Optical Instruments · MODEL 320

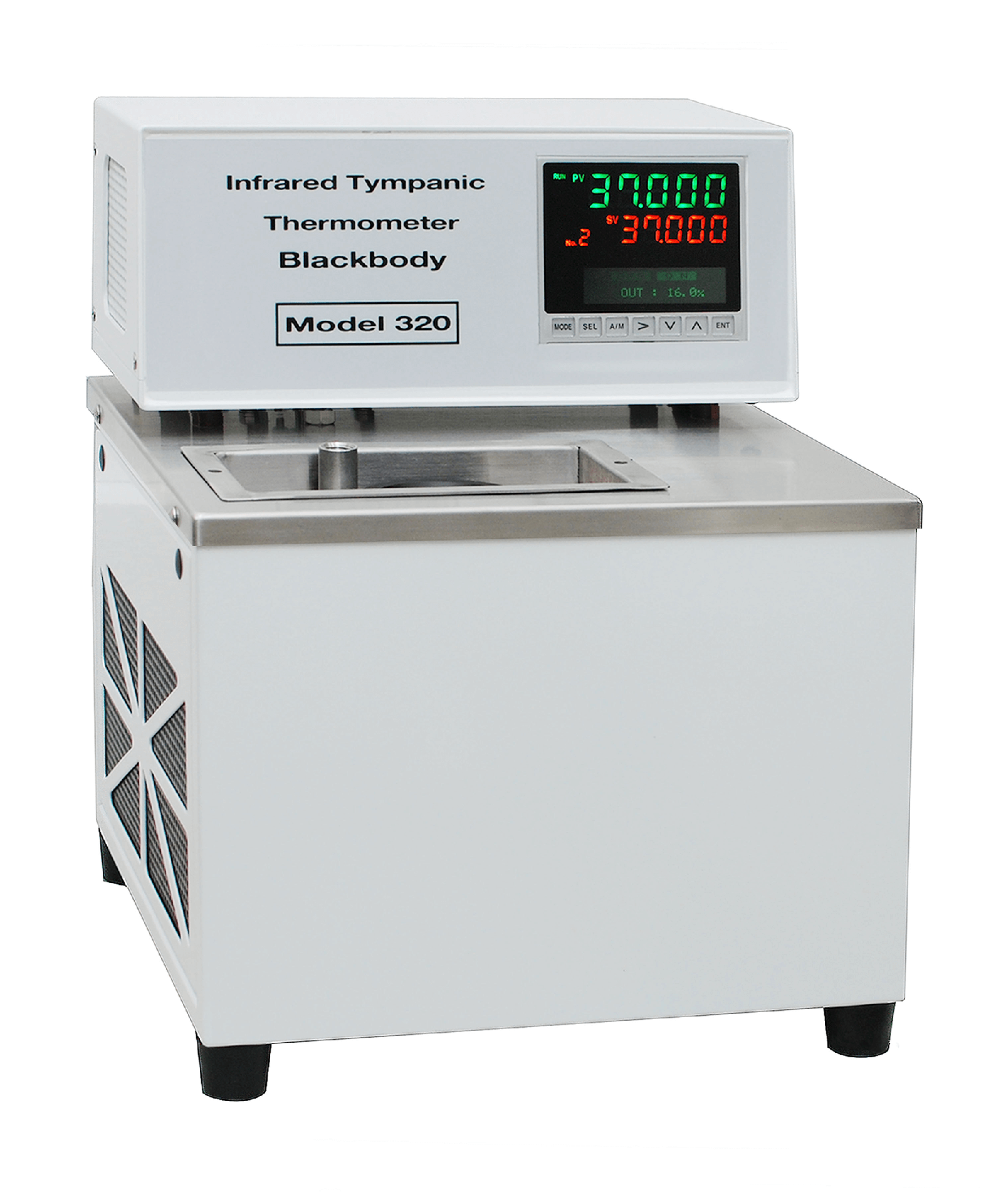

Ear/Forehead Thermometer Blackbody Calibrator 320
Ear/Forehead Thermometer Blackbody Calibrator 320 is a optical instruments product manufactured by Hotech Instruments Corp. (Model 320). Key specifications include: Temp. controlled Range 30°C~50°C; Display Resolution 0.001°C; Temp. Stability ± 0.005°C (environment temperature controlle…; Ambient Temp Range 15°C~40°C (Air-conditioned environment). Made in Taiwan, with product selection, calibration and maintenance support.
Specifications
| Model | 320 |
|---|---|
| Temp. controlled Range | 30°C~50°C |
| Temp. Controller | Microprocessor PID controller (Temp. Sensor PT-100) |
| Display Resolution | 0.001°C |
| Temp. Stability | ± 0.005°C (environment temperature controlled within 0.5°C) |
| Heat-up time （27°Cà37°C） | 10 min |
| Ambient Temp Range | 15°C~40°C (Air-conditioned environment) |
| Interface | RS-485 port available (Optional) |
| Power consumption | 5 Amp @AC 110 VAC ± 10% / 2.5Amp @AC 220VAC ± 10%, 50/60Hz |
| Bath Volume | 5.3 liters |
| Blackbody Quantity | 1pc (Optional for 2 ) |
| Blackbody Length | 80mm |
| Blackbody Aperture | Diameter: 12mm( Customization available ) |
| Dimension Overall | W292 x D300 x H385mm |
| Weight (Net) | 11.5kgs |
