Medical Equipment · MODEL 230

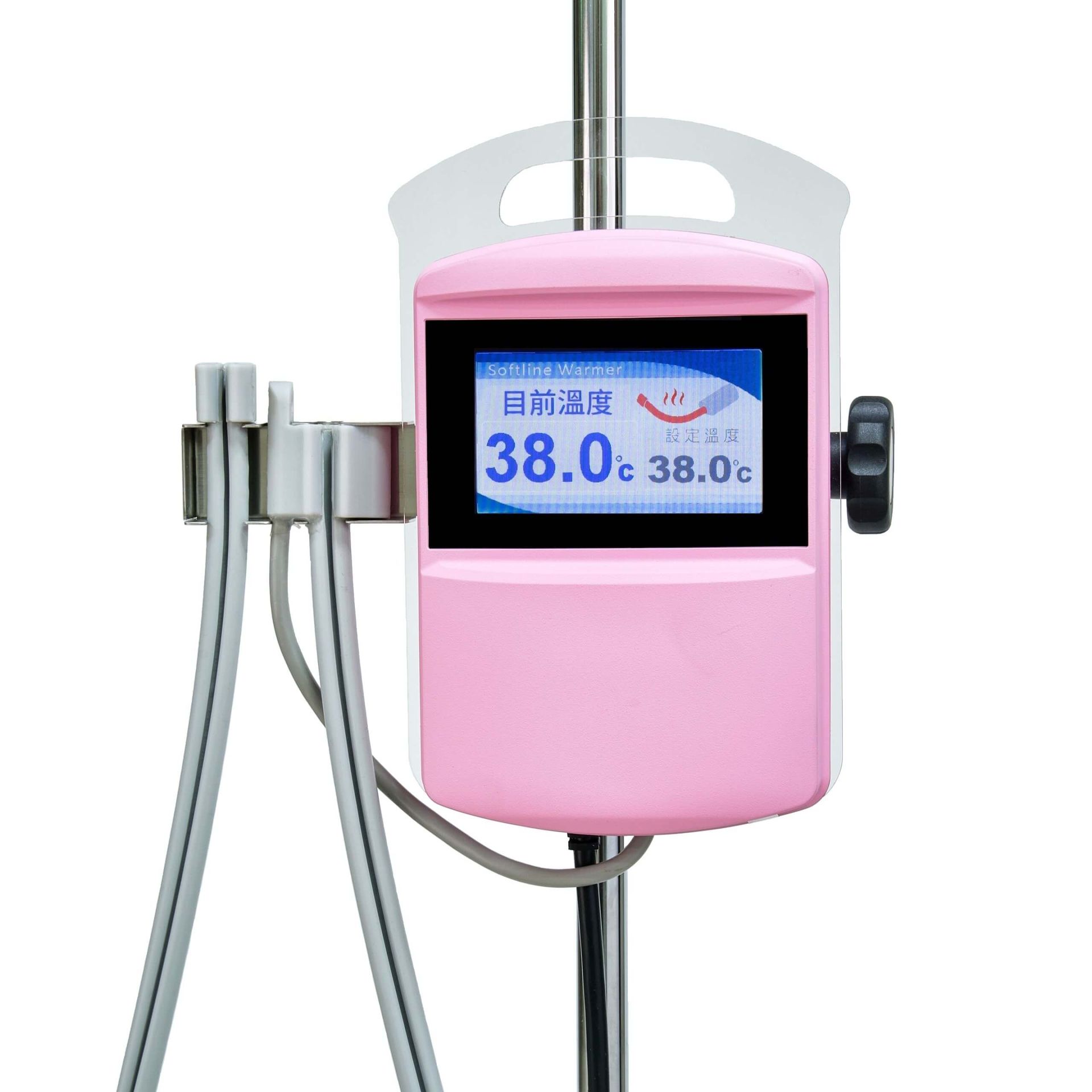

Genflow Soft line Blood/Fluid Warmer 230
Genflow Soft line Blood/Fluid Warmer 230 is a medical equipment product manufactured by Hotech Instruments Corp. (Model 230). Key specifications include: Power supply 110-240VAC can be used; Power consumption 1.0A/230VAC, 1.8A/115VAC; Temperature setting Can be adjusted arbitrarily from 30.0℃ to 39…; Over temperature protection 41°C±1°C, physical formula 85°C±3°C. Made in Taiwan, with product selection, calibration and maintenance support.
通過QMS認證通過ISO 13485認證
Specifications
| Model | 230 |
|---|---|
| Power supply | 110-240VAC can be used |
| Frequency | 50-60Hz |
| Maximum output | 60W |
| Power consumption | 1.0A/230VAC, 1.8A/115VAC |
| Fuse | 2.5A |
| Temperature setting | Can be adjusted arbitrarily from 30.0℃ to 39.0℃ in 0.1℃ increments |
| Control precision | ±2℃ |
| Over temperature protection | 41°C±1°C, physical formula 85°C±3°C |
| Over Current Protection | 2A |
| Ambient temperature | Operation +10℃~+40℃, storage / transportation -20℃~70℃ |
| Relative humidity | Operation 30~75%, storage / transportation 30~90% |
| Operation type | Continuous operation |
| Alarm function | When the temperature exceeds the set temperature by 2°C, an alarm will be generated, and the alarm will continue until the over-temperature situation is resolved. Alarm type ①sound alarm ②visual alarm |
| Size Controller | 246*150*74mm |
| Size Hose | L 1500mm D 5±1mm |
| Weight N.W | 1.27 Kgs |
TFDA medical-device license no.：暖流 軟管式輸血/輸液加溫器 衛署醫器製字第003551號
